Security - Concept

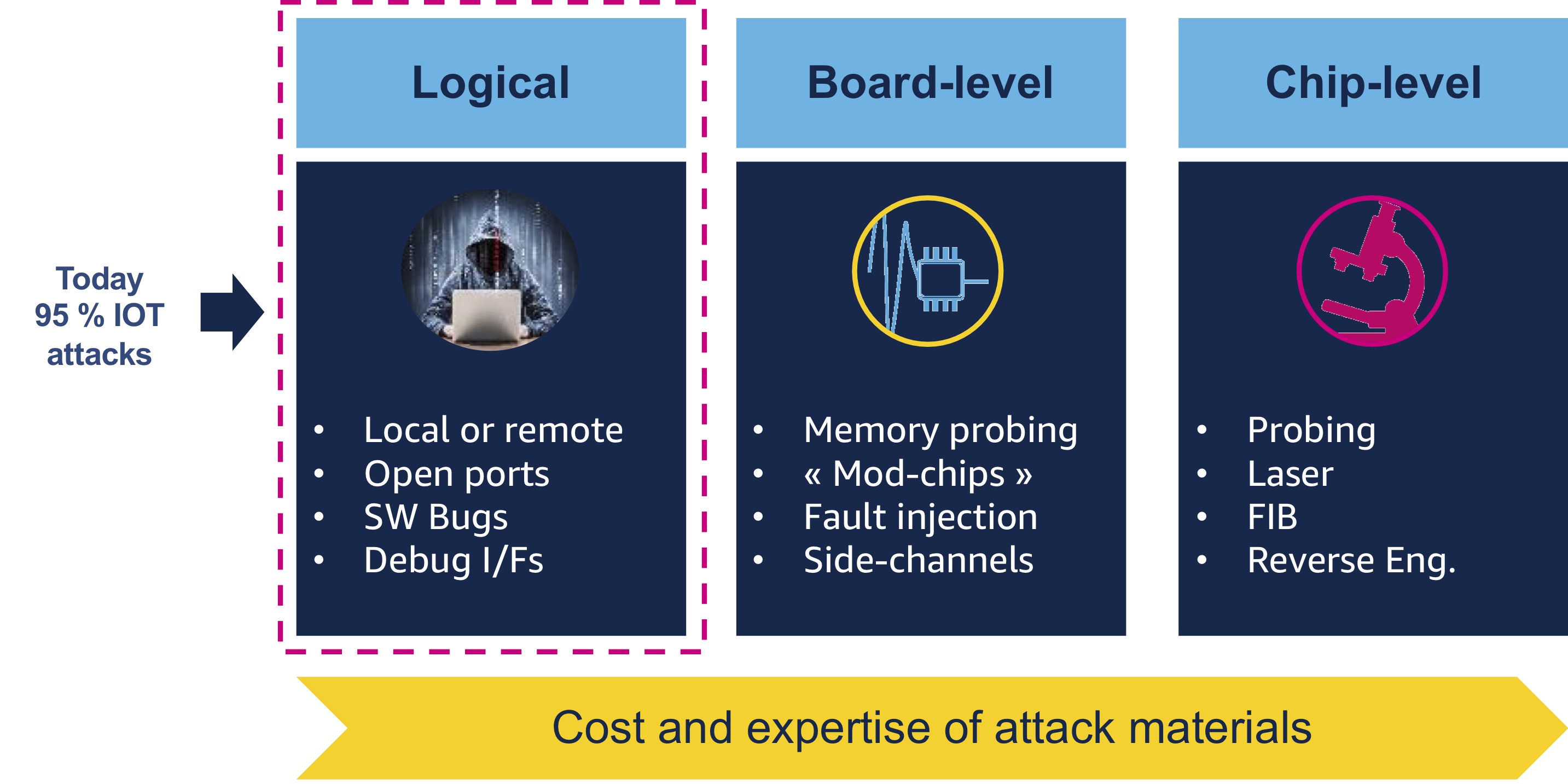

Categories of Attack: Security

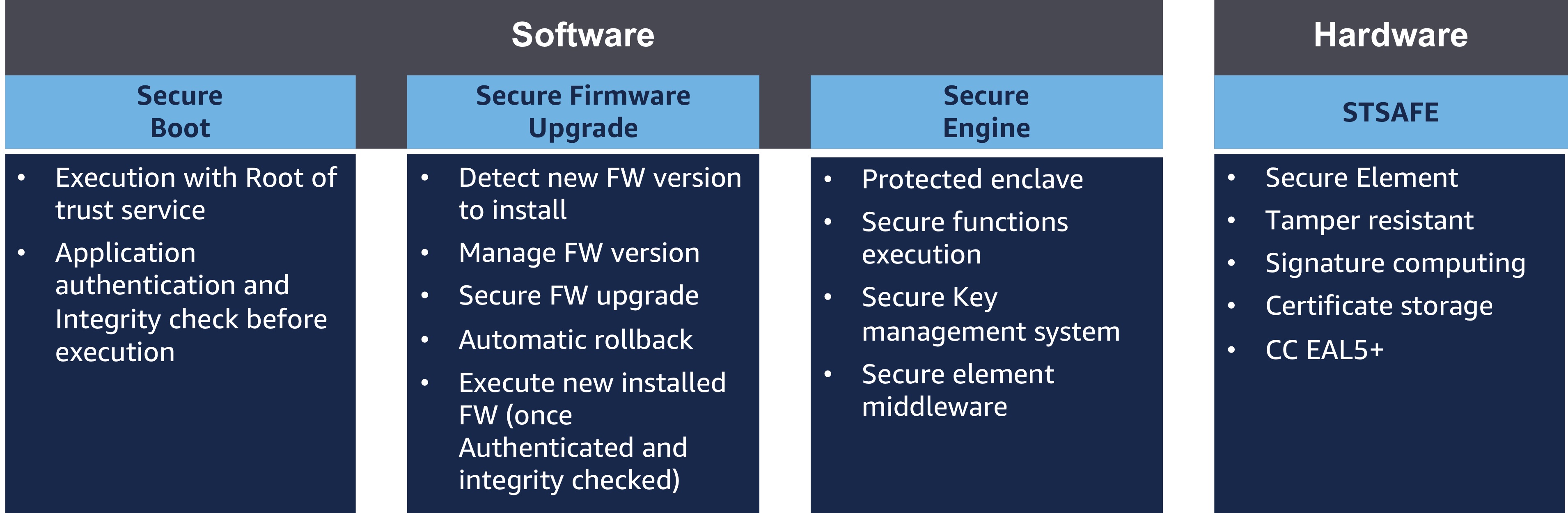

A Hardware/Software combination to protect from both logical attacks/board-level attacks and some chip level attacks
X-CUBE-SBSFU is a secure bootloader providing a security architecture and a root of trust to boot the application as it authenticates the application before running it. It is based on PKI features provided by STSAFE-A110 (X.509 certificates) and provides secure services at runtime for the application.
The secure key management services provide cryptographic services to the user application through the PKCS #11 APIs relying on STSAFE-A110 as a secure HW crypto token for ECC and as a secure key storage.
STSAFE-A110 is a secure element that is wsed by SBSFU as a root of trust for the firmware image authentication. It is also used by X-CUBE-AWS-2.0 Application to connect to AWS server with multi account registrationtechnology. The secure element also provides device identity and supports TLS connectivitiy.
Devices are more and more exposed to threats

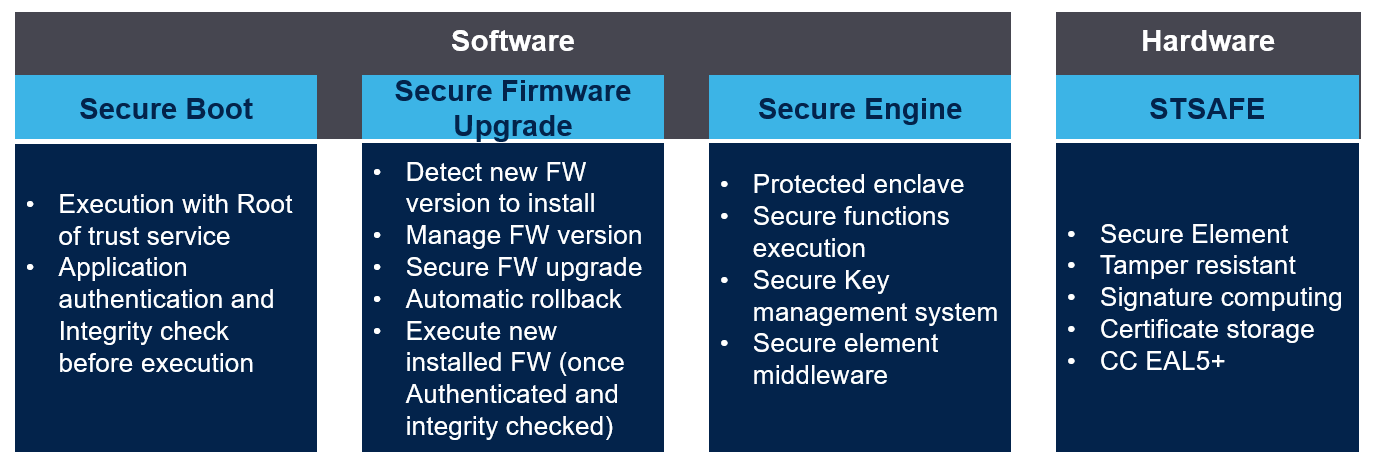

A Hardware/Software combination to protect from both logical attacks/board-level attacks and some chip level attacks
SBSFU is a secure bootloader providing a security architecture and a root of trust to boot the application
Authenticates the application before running it
Based on PKI features provided by STSAFE-A110 (X.509 certificates)
Provides secure services at runtime for the application
KMS via PKCS#11 interface relying on STSAFE-A110 as a secure HW crypto token for ECC and as a secure key storage
STSAFE-A110 is a secure element Used by SBSFU as a root of trust for the firmware image authentication Used by X-CUBE-AWS-2.0 Application to connect to AWS server with multi account registration technology Device identity TLS connection
Security - Secure boot principle & Secure Firmware Upgrade

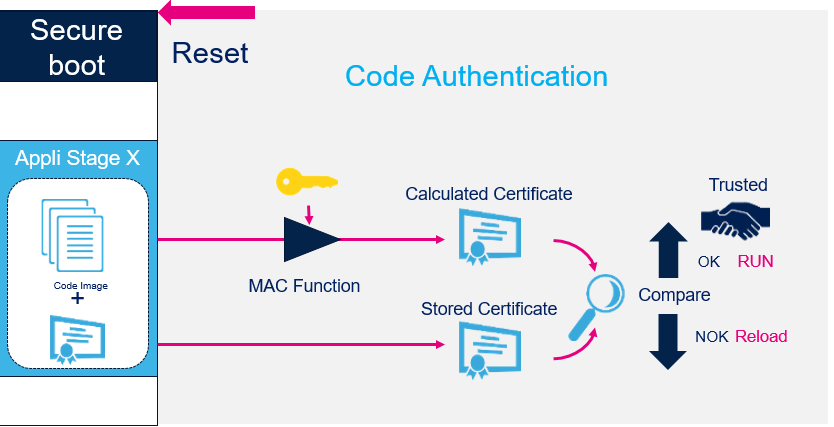

A predictable process performed at each reset using a key stored within the device
Immutable
First code executed
Verify the platform Integrity
Clock settings
Registers configurations
Memory Protection
Launch Root of Trust services
Authentication of code
Uses cryptography

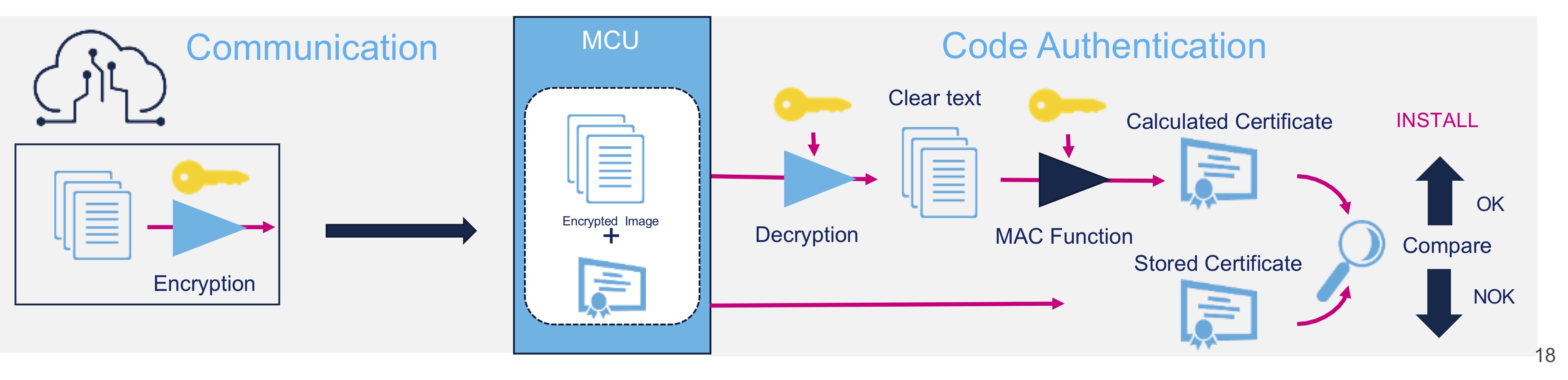

A process performed when a new image is available using a key stored within the device
- Performed in a secure way
- Prevent Unauthorized updates
- Access to secret code and key
- Access to confidential on-device data
- Each new image is authenticated before being installed

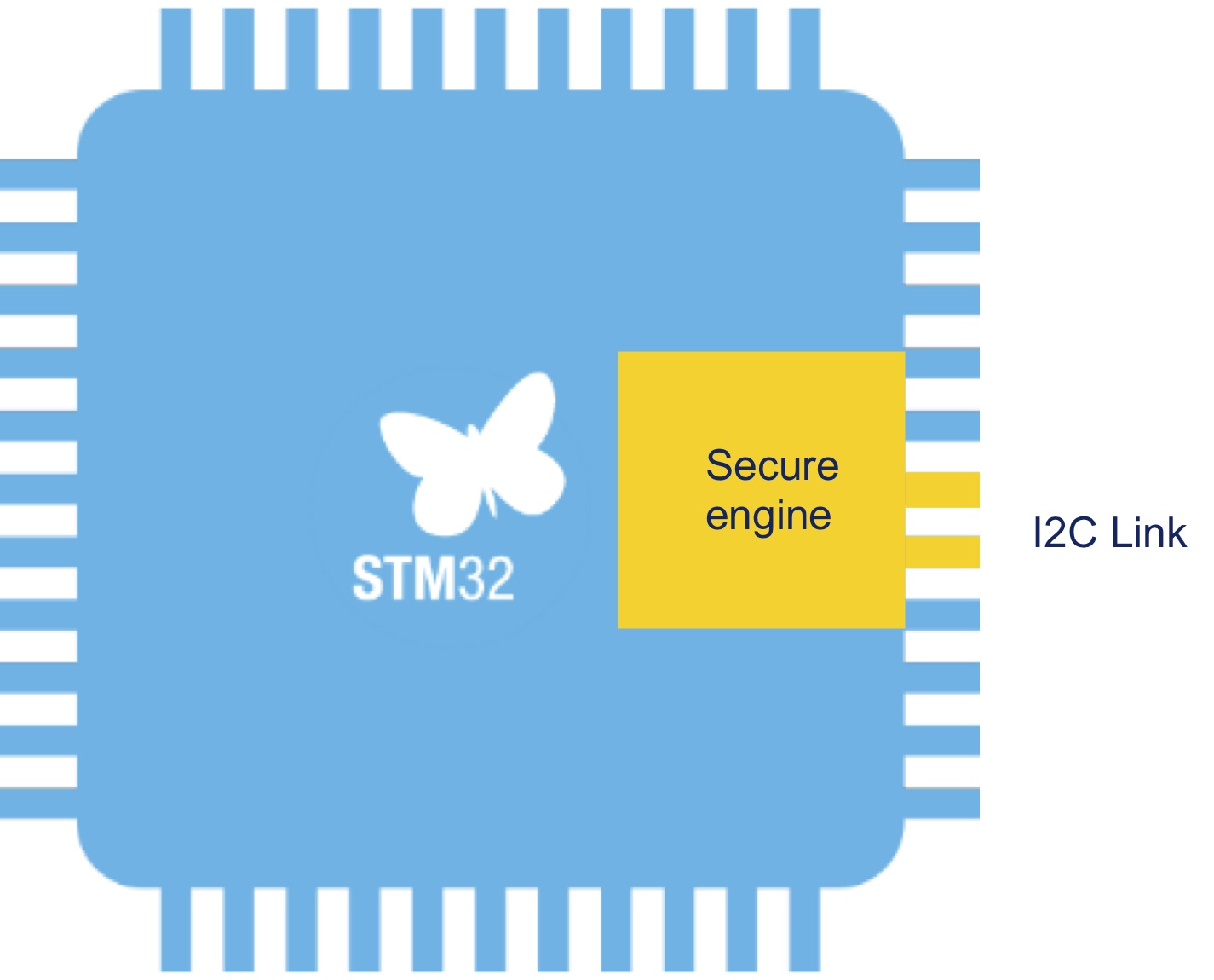

Secure Engine
A protected environment within the STM32L4 to manage all critical data and operations such as cryptography operations
- Single entry point enclave
- Dedicated for sensitive code
- PKCS#11 APIs
- Secured channel on I2C to communicate with STSAFE
- Symmetric key
- Store in isolated environment

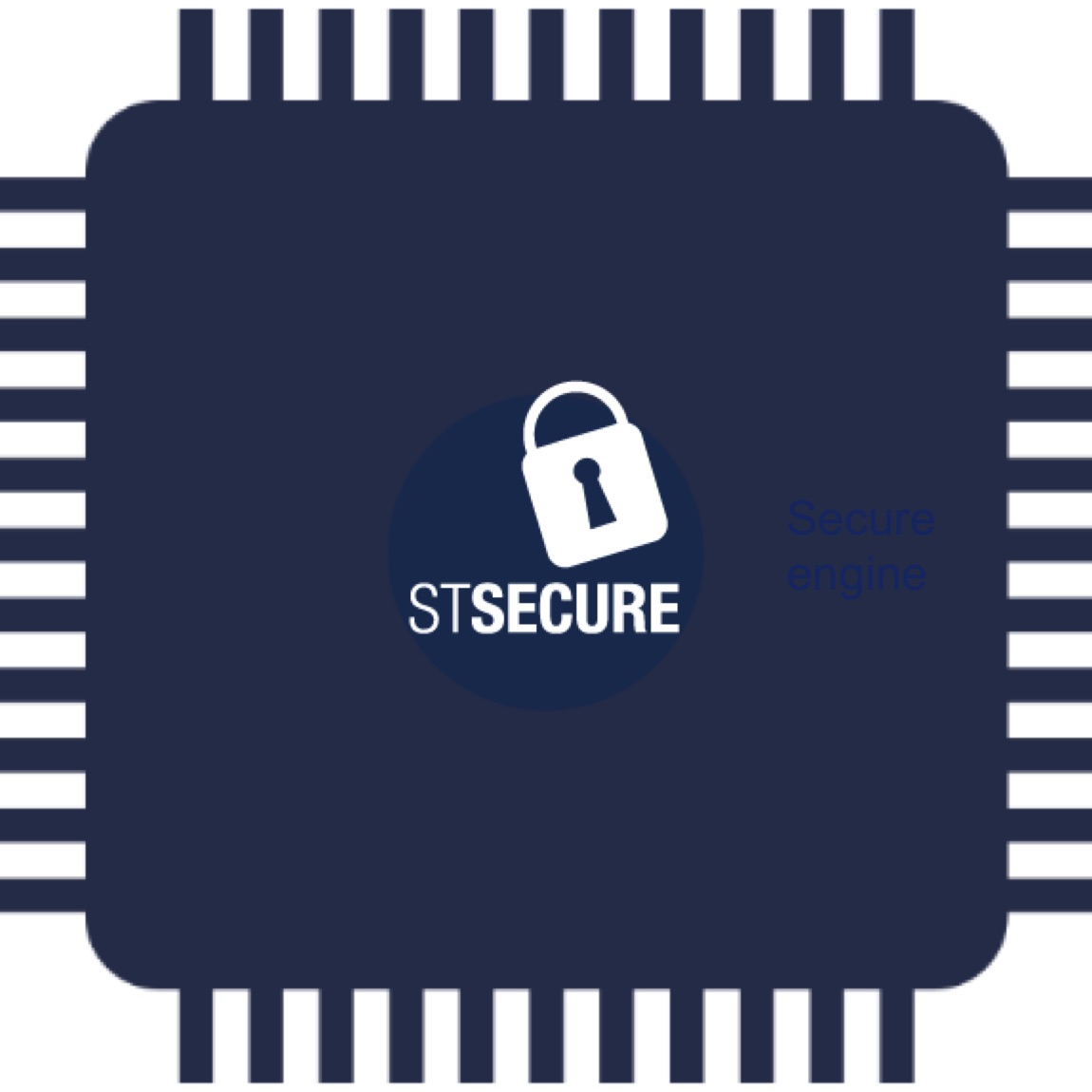

Secure Element
A tamper-resistant chip which has been tested and certified by external and recognized entities like Common Criteria
- CC EAL5+ certified
- Secure storage
- Root CA Certificate
- Device certificate
- Private keys
- TLS mutual authentication with AWS
- Performs firmware image authentication
- Secure boot
- Secure firmware update
